FWS-8600 MEC platform network appliance

Accelerating Smart Manufacturing with Gold-Awarded MEC Platform FWS-8600

2U rackmount MEC platform med 2. Generation Intel® Xeon® Scalable Processors

Dette netværksapparat fra AAEON er med sine dual 2. Generation Intel® Xeon® Scalable Processors klar til at levere høj computing ydeevne og reducere reaktionstiden. Som Multi-Access Edge Computing (MEC) gateway kan den bruges i fx smart manufacturing, og give effektive AI og maskinlærings løsninger til fx robotter og transportenheder.

FWS-8600 har gode muligheder for at blive skræddersyet til specifikke behov ved fx SDN, lagring, data center, server m.m.

FWS-8600 sikrede AAEON en plads som Gold Partner i Intel® Network Builders Winners’ Circle 2021 for andet år.

aaeon industri ai fws-8600

Se nærmere herunder om hvordan AAEON selv beskriver denne platform.

Accelerating Smart Manufacturing with FWS-8600

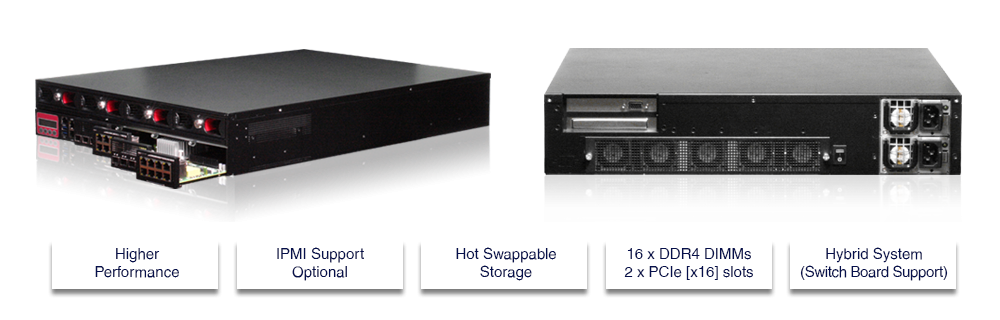

FWS-8600, a 2U rackmount network appliance powered by dual 2nd Generation Intel® Xeon® Scalable Processors, was awarded Gold Partner in Intel® Network Builders Winners’ Circle Program 2021 for being successfully deployed as a MEC (multi-access edge computing) gateway in smart manufacturing applications. By adopting dual 2nd Generation Intel® Xeon® Scalable Processors, FWS-8600 accelerates the compute processing performance and reduces the latency when deployed as an edge computing gateway. With built-in Intel® Deep Learning Boost engine, FWS-8600 accelerates the AI deployments, such as robotic arms and self-driving transport vehicles. To meet the required memory bandwidth for 5G smart manufacturing, FWS-8600 supports up to 512GB DDR4 RDIMM ECC RAM. For enhanced networking bandwidth, FWS-8600 can support a maximum LAN throughput of 300 – 400 Gbps.

FWS-8600 is powered by dual 2nd Generation Intel® Xeon® Scalable Processors to offer workload-optimized and AI-acceleration performance for data-intensive, multitasking workloads in smart manufacturing environments. The 2nd Generation Intel® Xeon® Scalable Processors support up to 56 cores and 112 threads to realize high-performance compute for 5G MEC applications. With improved interconnect technology, huge volume of traffic generated by AI projects can be intelligently managed between the computing cores to reduce the latency while optimizing performances.

Xeon Scalable Processors

Powered by Second Gen. Intl Xeon Scalable Processors. Whether it's Bronze, Silver, Gold or even Platinum, the FWS-8600 can power your project.(Xeon SP Platinum offered on per project basis)

Non-stop Operation

The FWS-8600 has several hot-swappable components including fans, HDD trays with locks, and power supplies, providing easy maintenance and continuous 24/7 operation even while being worked on.

Customizable for you

The FWS-8600 offers almost unlimited options for customization, tailoring its power and flexibility to fit your exact needs, from SDN, Storage, Data Center or server, AAEON can customize to order.

Optimized for AI

With high-performance and high throughput, the FWS-8600 can power any project. With Intel Deep Learning Boost with Xeon SP processors, the FWS-8600 is optimized for AI.

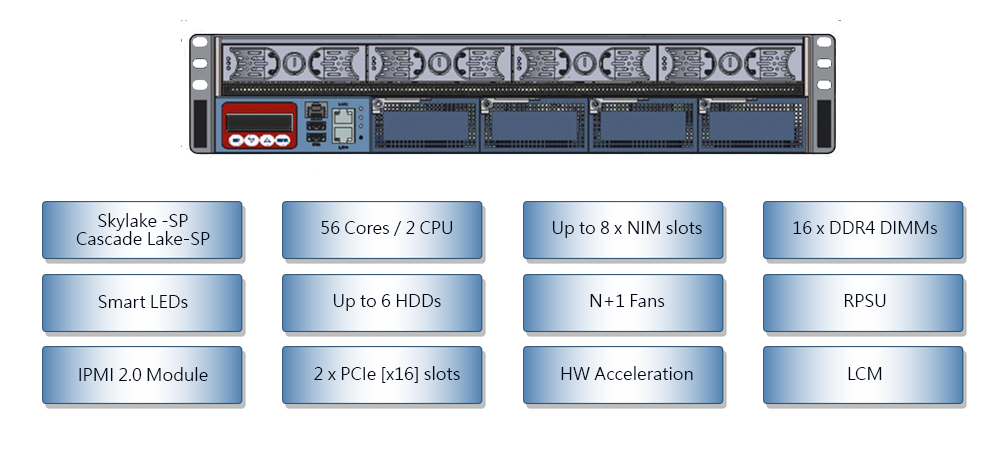

  • 2U Rackmount Network Appliance
  • Dual 2nd Gen Intel® Xeon® Scalable Processors
  • Intel® C621 Chipset
  • DDR4 2133/2400/2666 MHz RDIMM x 16, up to 512GB
  • 1GbE RJ45 Intel® i211 x 2, NIM slot x 4 (Project based up to 8 slots)
  • IPMI supported by AAEON Module
  • External Hotswappable 3.5” HDD Bay x 4, Internal 3.5” HDD Bay x 1
  • Mini-Card slot x 1, M.2 2260 M-key x 1
  • RJ-45 Console x 1, USB 3.2 Gen 1 x 2
  • 550W ~ 600W Redundant Power

Powered Intel® 2nd Generation Intel® Xeon® Scalable processors

2nd Generation Intel® Xeon® Scalable processors with built-in Intel® Deep Learning Boost deliver advanced AI capabilities for deploying the next era of IoT data-driven compute at the edge and advancing business transformation. Deliver high-performance deep learning inference and vision for AI workloads, consolidate diverse IoT workloads on the same hardware, and handle massive data sets and near-real-time transactions. Now you can get even better built-in deep learning capabilities, speed deployment, and lower TCO—simply with one integrated platform and with AI workloads optimized by the Intel® Distribution of OpenVINO™ toolkit.

aaeon fws-8600 network appliance industri netværksapparet

Intel® Deep Learning Boost

New Intel® Deep Learning Boost speeds up dense computations characteristic of various neural networks. Available on all 2nd Generation Intel® Xeon® Scalable processors (code-named Cascade Lake), Intel Deep Learning Boost provides low-precision integer operations to significantly accelerate performance for deep learning inference applications, including image recognition, object detection, data analytics, and more. This dramatic performance improvement and efficiency is delivered by using a single instruction for int8 convolutions for deep learning inference applications, which required three separate instructions in previous-generation processors. No hardware changes are required to support Intel Deep Learning Boost on 2nd Generation Intel Xeon Scalable processors.

Developers can access the new Intel Deep Learning Boost capabilities to boost performance of int8 data types in deep learning workloads using Intel® Distribution of OpenVINO™ toolkit to streamline deployment of deep learning inference.


-Object detection
-Image recognition
-Data analytics
-Medical anomaly detection
-Predictive maintenance
-Machine vision

Kontakt vores specialister i dag - klik her

Vil du vide mere om løsninger fra AAEON, artificial intelligence eller andre muligheder for at optimere industrielle processer? Vi er klar til at hjælpe dig videre - kontakt os endelig.

Se produktsiden for FWS-8600 her.

Se et lille udvalg af andre AAEON produkter her.

Se et udvalg af flere IoT og AI produkter her.

Vi leverer specialtilpassede løsninger til industrielt brug. Hvis du vil høre mere om muligheder og løsninger inden for industrielle produkter, så tag fat i os. Vi har et tæt samarbejde med førende leverandører, og er klar til at hjælpe dig videre med den rette industrielle løsning.
