Smart solution for the beverage packaging system

A bottle packaging company was looking for stainless steel panel PCs to serve as a factory automation control terminal...

Background

In the packaging industry, machine builders must select HMIs with correct functionality, intuitive control, comfortable screen size and robust housing for various applications that are taking place in environments with high sanitary standard. A bottle packaging company was looking for stainless steel panel PCs to serve as a factory automation control terminal that improves production efficiency while enhancing operator’s safety. The organization wanted to have several flat buttons and a large emergency stop button on the front panel for them to define the functions, and as a result, the buttons will directly connect to the sensors for fast response when it comes to authorized user controls or emergency situations.

Core Products

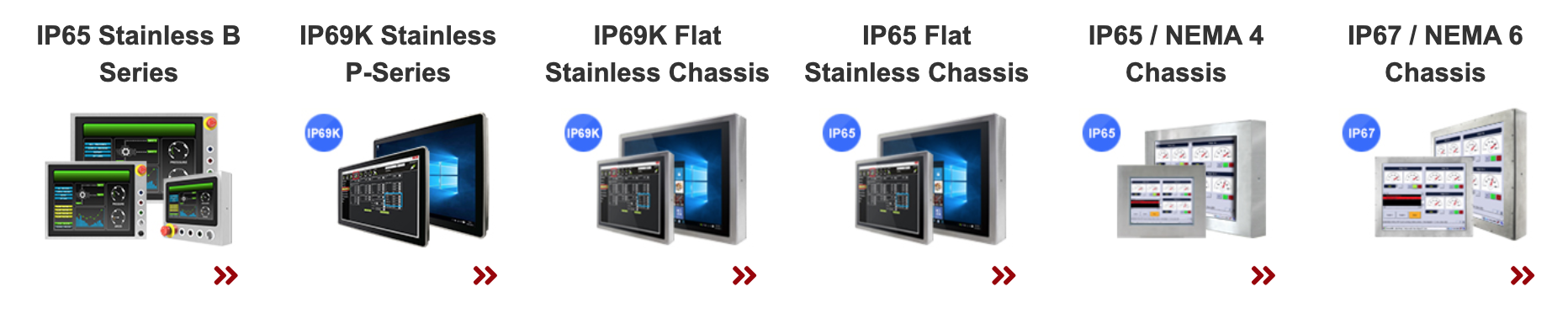

Stainless B Series with Push Buttons Panel PC/Display (10.1”~21.5”)

Main Challenges

User-Defined Function Buttons

The device’s front panel will need to contain user-defined function buttons and a large emergency stop button to allow the operators to perform the most intuitive operation when an authorized user control or an emergency situation occurs, preventing them from wasting too much time navigating through HMI screens.

Corrosion Resistant, Water and Dust Proof Enclosure

The unit should to be corrosion, water and dustproof to withstand close-range high-pressure, high temperature wash downs.

PCAP Multi-Touch Display

The more responsive and user-friendly the HMI is, the more efficient and cost-effective the job will be. The implementation of PCAP technology helps deliver excellent responsive performance, even in extreme environments, to enable workers to operate the display easily with fingers.

Why Winmate

User-defined function buttons and a large emergency button
PCAP touch panel with a rotary switch for effortless touch mode selection
Full IP65 rated SUS316 stainless steel enclosure.

Contact us if you have any questions
